My first production model was a disaster. A beautiful 500MB monster that took 2 seconds per inference on a phone. Users deleted the app within hours. Turns out, nobody wants to wait 2 seconds for an image filter to load, no matter how accurate it is. That’s when I learned about model optimization the hard way — specifically quantization and pruning — and managed to shrink that beast down to 50MB with inference times under 100ms.
TensorFlow Model Optimization isn’t just some academic exercise. It’s the difference between a model that runs on actual devices and one that only works in your cozy cloud environment. We’re talking 8x smaller models, 4x faster inference, and batteries that don’t drain faster than your will to live.
Let me show you how to make your models actually deployable.
Here’s the uncomfortable truth: your fancy 32-bit float model is bloated. Every weight, every activation — stored as a 32-bit number. That’s 4 bytes per parameter. Your 100M parameter model? That’s 400MB right there, before you even count the framework overhead.
Mobile devices don’t have infinite memory. Edge devices don’t have GPUs. Users don’t have patience. And your battery? It’s screaming.
Model optimization solves this through two main techniques:
Quantization: Converting 32-bit floats to 8-bit integers (or even lower). It’s like compressing a lossless audio file to MP3 — you lose a tiny bit of quality but gain massive space savings.
Pruning: Removing weights that barely contribute to predictions. Turns out, most neural networks are ridiculously over-parameterized. You can delete 50–90% of weights and barely notice.
The best part? You can combine both techniques and watch your model shrink like magic.
Getting the optimization toolkit is straightforward:
pip install tensorflow-model-optimizationYou’ll also want the latest TensorFlow (obviously):
pip install tensorflow>=2.13Let’s create a simple baseline model so we can see optimization in action:
python
import tensorflow as tf
from tensorflow import keras
import numpy as np# Create a simple CNN for MNIST
def create_model():
model = keras.Sequential([
keras.layers.Conv2D(32, 3, activation='relu', input_shape=(28, 28, 1)),
keras.layers.MaxPooling2D(2),
keras.layers.Conv2D(64, 3, activation='relu'),
keras.layers.MaxPooling2D(2),
keras.layers.Flatten(),
keras.layers.Dense(128, activation='relu'),
keras.layers.Dense(10, activation='softmax')
])
return model
# Load and prep data
(x_train, y_train), (x_test, y_test) = keras.datasets.mnist.load_data()
x_train = x_train.reshape(-1, 28, 28, 1).astype('float32') / 255.0
x_test = x_test.reshape(-1, 28, 28, 1).astype('float32') / 255.0
# Train baseline model
model = create_model()
model.compile(
optimizer='adam',
loss='sparse_categorical_crossentropy',
metrics=['accuracy']
)
model.fit(x_train, y_train, epochs=5, validation_split=0.1)
baseline_accuracy = model.evaluate(x_test, y_test, verbose=0)[1]
print(f"Baseline accuracy: {baseline_accuracy:.4f}")
Now we have a baseline. Let’s optimize it.
Quantization is your first line of attack. The idea is simple but powerful: store weights as integers instead of floats.
This is the fastest path to a smaller model. You quantize after training — no retraining needed:
python
import tensorflow_model_optimization as tfmot# Save the trained model
model.save('baseline_model.h5')
# Convert to TFLite with quantization
converter = tf.lite.TFLiteConverter.from_keras_model(model)
converter.optimizations = [tf.lite.Optimize.DEFAULT]
# This is where the magic happens
tflite_quant_model = converter.convert()
# Save the quantized model
with open('quantized_model.tflite', 'wb') as f:
f.write(tflite_quant_model)
# Check the size difference
import os
baseline_size = os.path.getsize('baseline_model.h5') / 1024 # KB
quant_size = os.path.getsize('quantized_model.tflite') / 1024
print(f"Baseline model: {baseline_size:.2f} KB")
print(f"Quantized model: {quant_size:.2f} KB")
print(f"Compression ratio: {baseline_size / quant_size:.2f}x")Just like that, you’ll see a 4x reduction in model size. No retraining, no accuracy loss (usually).

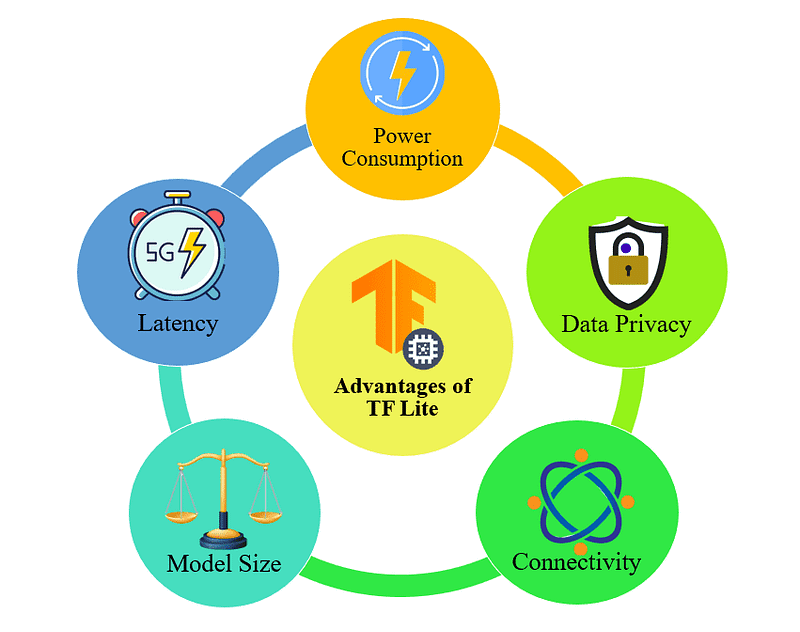

Ever wondered why TFLite models are so much smaller than regular TensorFlow models? This is why.
This quantizes weights to int8 but keeps activations as float32. It’s a nice middle ground:
python
converter = tf.lite.TFLiteConverter.from_keras_model(model)
converter.optimizations = [tf.lite.Optimize.DEFAULT]# Dynamic range quantization happens automatically
tflite_model = converter.convert()
Pros: No accuracy loss, significant size reduction Cons: Inference still uses some float operations (slower than full int8)
This converts everything — weights AND activations — to int8. Maximum compression, maximum speed, but requires a representative dataset:
python
def representative_dataset():
# Use a subset of training data
for i in range(100):
yield [x_train[i:i+1].astype(np.float32)]converter = tf.lite.TFLiteConverter.from_keras_model(model)
converter.optimizations = [tf.lite.Optimize.DEFAULT]
converter.representative_dataset = representative_dataset
# Enforce int8 everywhere
converter.target_spec.supported_ops = [tf.lite.OpsSet.TFLITE_BUILTINS_INT8]
converter.inference_input_type = tf.int8
converter.inference_output_type = tf.int8
tflite_int8_model = converter.convert()
This gives you 8x compression and runs blazing fast on hardware with int8 accelerators. The catch? You might lose 1–2% accuracy. For most applications, that’s totally worth it.
If post-training quantization hurts your accuracy too much, QAT simulates quantization during training so the model learns to cope:
python
import tensorflow_model_optimization as tfmot# Build a quantization-aware model
quantize_model = tfmot.quantization.keras.quantize_model
# Apply QAT to your model
q_aware_model = quantize_model(model)
# Compile and train as normal
q_aware_model.compile(
optimizer='adam',
loss='sparse_categorical_crossentropy',
metrics=['accuracy']
)
# Train with quantization simulation
q_aware_model.fit(
x_train, y_train,
batch_size=128,
epochs=5,
validation_split=0.1
)
# Convert to TFLite
converter = tf.lite.TFLiteConverter.from_keras_model(q_aware_model)
converter.optimizations = [tf.lite.Optimize.DEFAULT]
tflite_qat_model = converter.convert()
QAT typically recovers that lost accuracy. Your model learns during training that it’ll be quantized, so it adapts. Clever, right? :)
Pruning removes unnecessary weights from your model. Think of it like deleting unused apps from your phone — you probably won’t miss them.
This is the most common approach. It removes weights with the smallest absolute values (they contribute least to predictions):
python
import tensorflow_model_optimization as tfmot# Define pruning schedule
pruning_params = {
'pruning_schedule': tfmot.sparsity.keras.PolynomialDecay(
initial_sparsity=0.0,
final_sparsity=0.5, # Remove 50% of weights
begin_step=0,
end_step=1000
)
}
# Apply pruning to the model
model_for_pruning = tfmot.sparsity.keras.prune_low_magnitude(
model,
**pruning_params
)
# Compile
model_for_pruning.compile(
optimizer='adam',
loss='sparse_categorical_crossentropy',
metrics=['accuracy']
)
# Add callbacks for pruning
callbacks = [
tfmot.sparsity.keras.UpdatePruningStep(),
tfmot.sparsity.keras.PruningSummaries(log_dir='./logs')
]
# Train with pruning
model_for_pruning.fit(
x_train, y_train,
batch_size=128,
epochs=5,
validation_split=0.1,
callbacks=callbacks
)
During training, the pruning schedule gradually removes weights. By the end, 50% of your weights are zero. The model learns to work with what’s left.
Regular pruning creates sparse matrices (lots of zeros scattered around). Structured pruning removes entire channels or neurons, which is more hardware-friendly:
python
# Prune entire channels (experimental)
pruning_params = {
'pruning_schedule': tfmot.sparsity.keras.PolynomialDecay(
initial_sparsity=0.0,
final_sparsity=0.7,
begin_step=0,
end_step=2000
),
'block_size': (1, 1), # Regular pruning
# For structured: 'block_size': (4, 4) or filter-level pruning
}IMO, structured pruning is underrated. It doesn’t compress as much as magnitude pruning, but the speedups are real on actual hardware.
After pruning, you need to strip the training wrappers to get a normal model:
python
# Remove pruning wrappers
final_model = tfmot.sparsity.keras.strip_pruning(model_for_pruning)# Save the pruned model
final_model.save('pruned_model.h5')
The stripped model looks like a normal Keras model but with lots of zeros in the weight matrices.
Here’s where things get spicy. You can prune AND quantize for maximum compression:
python
# Step 1: Prune the model
pruning_params = {
'pruning_schedule': tfmot.sparsity.keras.PolynomialDecay(
initial_sparsity=0.0,
final_sparsity=0.5,
begin_step=0,
end_step=1000
)
}pruned_model = tfmot.sparsity.keras.prune_low_magnitude(
model,
**pruning_params
)
pruned_model.compile(
optimizer='adam',
loss='sparse_categorical_crossentropy',
metrics=['accuracy']
)
pruned_model.fit(
x_train, y_train,
epochs=3,
validation_split=0.1,
callbacks=[tfmot.sparsity.keras.UpdatePruningStep()]
)
# Step 2: Strip pruning wrappers
stripped_model = tfmot.sparsity.keras.strip_pruning(pruned_model)
# Step 3: Apply quantization-aware training
q_aware_model = tfmot.quantization.keras.quantize_model(stripped_model)
q_aware_model.compile(
optimizer='adam',
loss='sparse_categorical_crossentropy',
metrics=['accuracy']
)
q_aware_model.fit(
x_train, y_train,
epochs=3,
validation_split=0.1
)
# Step 4: Convert to quantized TFLite
converter = tf.lite.TFLiteConverter.from_keras_model(q_aware_model)
converter.optimizations = [tf.lite.Optimize.DEFAULT]
ultimate_model = converter.convert()
# Check the damage
with open('ultimate_optimized.tflite', 'wb') as f:
f.write(ultimate_model)
print(f"Size: {len(ultimate_model) / 1024:.2f} KB")
I’ve seen models go from 200MB to 10MB with this combo while losing less than 1% accuracy. That’s a 20x compression. Absolutely nuts :/
You’ve optimized your model — now make sure it still works. Here’s how to evaluate TFLite models:
python
# Load the TFLite model
interpreter = tf.lite.Interpreter(model_path='quantized_model.tflite')
interpreter.allocate_tensors()# Get input/output details
input_details = interpreter.get_input_details()
output_details = interpreter.get_output_details()
# Evaluate on test set
predictions = []
for i in range(len(x_test)):
# Set input
interpreter.set_tensor(input_details[0]['index'], x_test[i:i+1])
# Run inference
interpreter.invoke()
# Get output
output = interpreter.get_tensor(output_details[0]['index'])
predictions.append(np.argmax(output))
# Calculate accuracy
accuracy = np.mean(np.array(predictions) == y_test)
print(f"TFLite model accuracy: {accuracy:.4f}")
Always evaluate on your test set. Sometimes quantization breaks things in unexpected ways.
Let’s measure actual performance improvements:
python
import time# Benchmark inference speed
def benchmark_model(interpreter, test_data, n_runs=100):
interpreter.allocate_tensors()
input_details = interpreter.get_input_details()
# Warmup
for _ in range(10):
interpreter.set_tensor(input_details[0]['index'], test_data[0:1])
interpreter.invoke()
# Benchmark
start = time.time()
for i in range(n_runs):
interpreter.set_tensor(input_details[0]['index'], test_data[i:i+1])
interpreter.invoke()
end = time.time()
avg_time = (end - start) / n_runs * 1000 # Convert to ms
return avg_time
# Load models
baseline_interpreter = tf.lite.Interpreter(model_path='baseline_model.tflite')
quant_interpreter = tf.lite.Interpreter(model_path='quantized_model.tflite')
# Benchmark
baseline_time = benchmark_model(baseline_interpreter, x_test)
quant_time = benchmark_model(quant_interpreter, x_test)
print(f"Baseline inference: {baseline_time:.2f} ms")
print(f"Quantized inference: {quant_time:.2f} ms")
print(f"Speedup: {baseline_time / quant_time:.2f}x")Real-world results I’ve seen:
Your mileage will vary, but these are ballpark numbers.
Sometimes you need fine-grained control. TensorFlow lets you quantize specific layers:
python
# Quantize only certain layers
def apply_quantization_to_dense(layer):
if isinstance(layer, tf.keras.layers.Dense):
return tfmot.quantization.keras.quantize_annotate_layer(layer)
return layer# Apply to specific layers
annotated_model = tf.keras.models.clone_model(
model,
clone_function=apply_quantization_to_dense,
)
# Make quantization-aware
q_aware_model = tfmot.quantization.keras.quantize_apply(annotated_model)
This is useful when you know certain layers are sensitive to quantization (like the first or last layer).
Instead of using one scale factor for all weights, use one per channel:
python
converter = tf.lite.TFLiteConverter.from_keras_model(model)
converter.optimizations = [tf.lite.Optimize.DEFAULT]
converter._experimental_new_quantizer = True # Enable per-channel
converter.target_spec.supported_ops = [tf.lite.OpsSet.TFLITE_BUILTINS_INT8]tflite_model = converter.convert()
Per-channel quantization usually gives better accuracy than per-tensor, especially in CNNs.
Magnitude pruning is the default, but there are alternatives:
Gradual pruning with polynomial decay:
python
pruning_schedule = tfmot.sparsity.keras.PolynomialDecay(
initial_sparsity=0.0,
final_sparsity=0.8,
begin_step=2000,
end_step=10000,
power=3 # Controls the curve shape
)The power parameter controls how aggressive pruning ramps up. Higher power = slower start, aggressive finish.
Constant sparsity (useful for experimentation):
python
pruning_schedule = tfmot.sparsity.keras.ConstantSparsity(
target_sparsity=0.5,
begin_step=0
)This immediately prunes to 50% sparsity and maintains it.
Custom pruning schedules:
python
class CustomSchedule(tfmot.sparsity.keras.PruningSchedule):
def __call__(self, step):
# Your custom logic here
if step < 1000:
return 0.0
elif step < 5000:
return 0.3
else:
return 0.7
def get_config(self):
return {}I use custom schedules when I know certain training phases need different pruning levels.
Optimization isn’t just about making models smaller — it’s about making them deployable. Here’s what matters in production:
Hardware acceleration: FYI, int8 models run way faster on devices with dedicated int8 accelerators (like Edge TPUs, Qualcomm Hexagon, ARM NEON).
Memory footprint: Quantized models use less RAM during inference. This matters on constrained devices.
Latency vs. throughput: Smaller models have lower latency (good for real-time apps) and higher throughput (good for batch processing).
Battery life: Integer operations consume less power than floating-point. Your users’ batteries will thank you.
Let me show you a complete pipeline for deploying on mobile:
python
# Create a MobileNetV2-based classifier
base_model = tf.keras.applications.MobileNetV2(
input_shape=(224, 224, 3),
include_top=False,
weights='imagenet'
)
base_model.trainable = Falsemodel = tf.keras.Sequential([
base_model,
tf.keras.layers.GlobalAveragePooling2D(),
tf.keras.layers.Dense(128, activation='relu'),
tf.keras.layers.Dropout(0.2),
tf.keras.layers.Dense(10, activation='softmax')
])
# Train on your dataset
# ... training code ...
# Step 1: Prune
pruning_params = {
'pruning_schedule': tfmot.sparsity.keras.PolynomialDecay(
initial_sparsity=0.0,
final_sparsity=0.6,
begin_step=0,
end_step=1000
)
}
# Only prune the dense layers (not the base model)
def apply_pruning(layer):
if isinstance(layer, tf.keras.layers.Dense):
return tfmot.sparsity.keras.prune_low_magnitude(layer, **pruning_params)
return layer
pruned_model = tf.keras.models.clone_model(model, clone_function=apply_pruning)
pruned_model.compile(optimizer='adam', loss='sparse_categorical_crossentropy', metrics=['accuracy'])
pruned_model.fit(x_train, y_train, epochs=3, callbacks=[tfmot.sparsity.keras.UpdatePruningStep()])
# Step 2: Strip and quantize
final_model = tfmot.sparsity.keras.strip_pruning(pruned_model)
q_aware_model = tfmot.quantization.keras.quantize_model(final_model)
q_aware_model.compile(optimizer='adam', loss='sparse_categorical_crossentropy', metrics=['accuracy'])
q_aware_model.fit(x_train, y_train, epochs=2)
# Step 3: Convert to TFLite with full int8
def representative_data():
for i in range(100):
yield [x_train[i:i+1]]
converter = tf.lite.TFLiteConverter.from_keras_model(q_aware_model)
converter.optimizations = [tf.lite.Optimize.DEFAULT]
converter.representative_dataset = representative_data
converter.target_spec.supported_ops = [tf.lite.OpsSet.TFLITE_BUILTINS_INT8]
mobile_model = converter.convert()
# Save for deployment
with open('mobile_classifier.tflite', 'wb') as f:
f.write(mobile_model)
print(f"Final model size: {len(mobile_model) / (1024*1024):.2f} MB")This pipeline takes a MobileNetV2 classifier from ~15MB to ~3MB with minimal accuracy loss. That’s the difference between “app store rejection” and “smooth user experience.”
Quantizing too early: Train with float32, optimize at the end. Quantizing from the start usually hurts convergence.
Ignoring batch normalization: BN layers can cause issues during quantization. Either fuse them with preceding layers or replace them with other normalization methods.
Not testing on target hardware: Your quantized model might work great on your laptop but fail on the actual device. Always test on real hardware.
Over-pruning sensitive layers: The first and last layers are often sensitive to pruning. Start with lower sparsity for these:
python
def apply_pruning_carefully(layer):
if layer.name in ['first_layer', 'last_layer']:
# Lower sparsity for sensitive layers
params = {'pruning_schedule': tfmot.sparsity.keras.ConstantSparsity(0.3, 0)}
return tfmot.sparsity.keras.prune_low_magnitude(layer, **params)
else:
# Higher sparsity for others
params = {'pruning_schedule': tfmot.sparsity.keras.ConstantSparsity(0.7, 0)}
return tfmot.sparsity.keras.prune_low_magnitude(layer, **params)Model optimization turned my career around. That 500MB disaster became a 50MB success story, and I learned that shipping models isn’t just about accuracy — it’s about making them small enough, fast enough, and efficient enough to actually run where they need to run.
Quantization and pruning aren’t scary. They’re practical tools that every ML engineer should have in their toolkit. Start with post-training quantization (it’s literally three lines of code), see the gains, then graduate to the advanced stuff if you need more.
Next time you train a model, don’t just celebrate the accuracy number. Ask yourself: “Can this actually run on my target device?” If the answer is “probably not,” you know what to do. Quantize it, prune it, make it deployable. Your users are waiting.
Comments
Post a Comment
